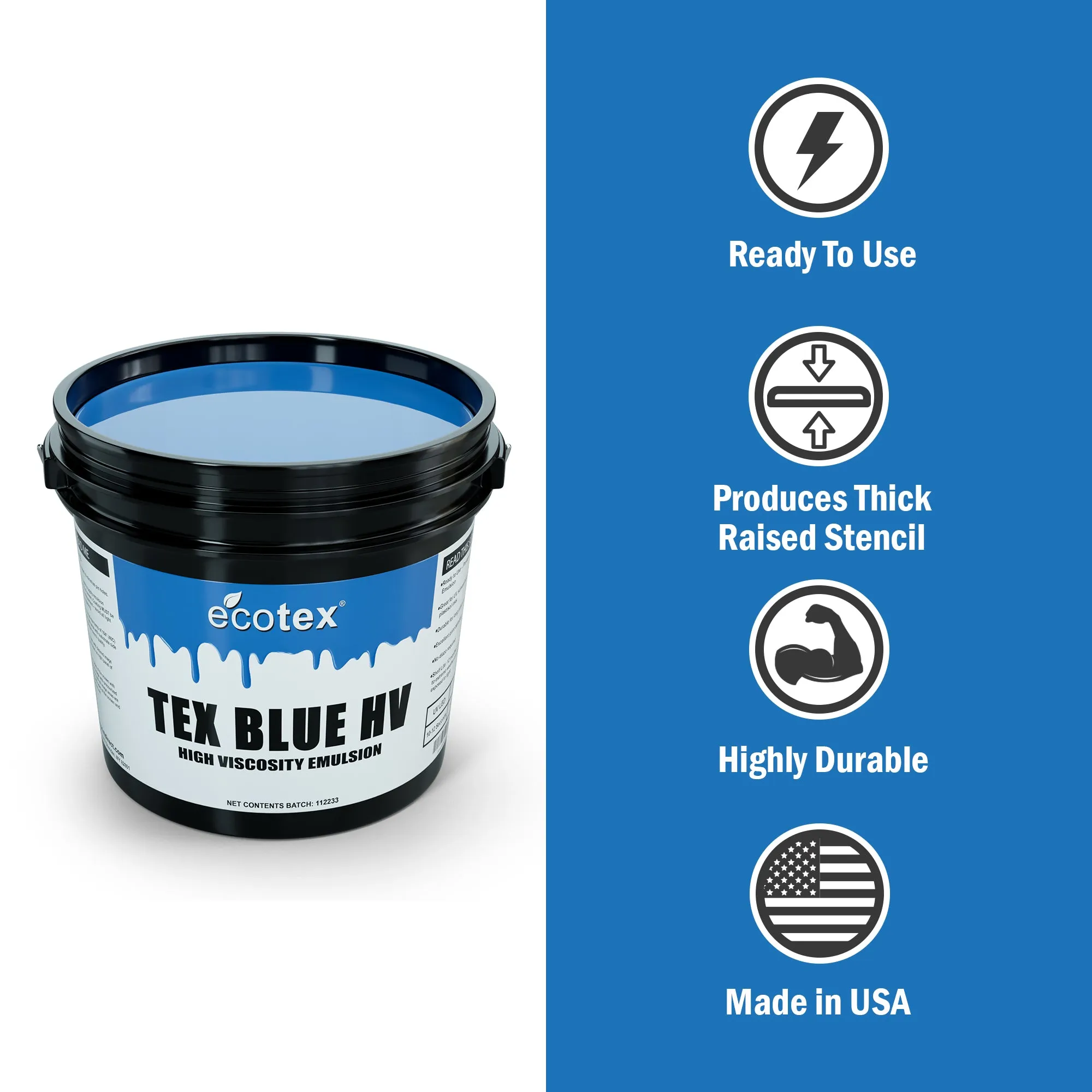

Benefits:
- Ready to use - No diazo or mixing required
- Produces a thick raised stencil great for laying thicker layers of ink on the garment - High viscosity formula
- Compatible with multiple ink systems - Plastisol, UV & Solvents
- Produces crisp detailed stencils on all mesh counts
- Endures long print runs without breaking down
- Long Shelf Life - 12 months

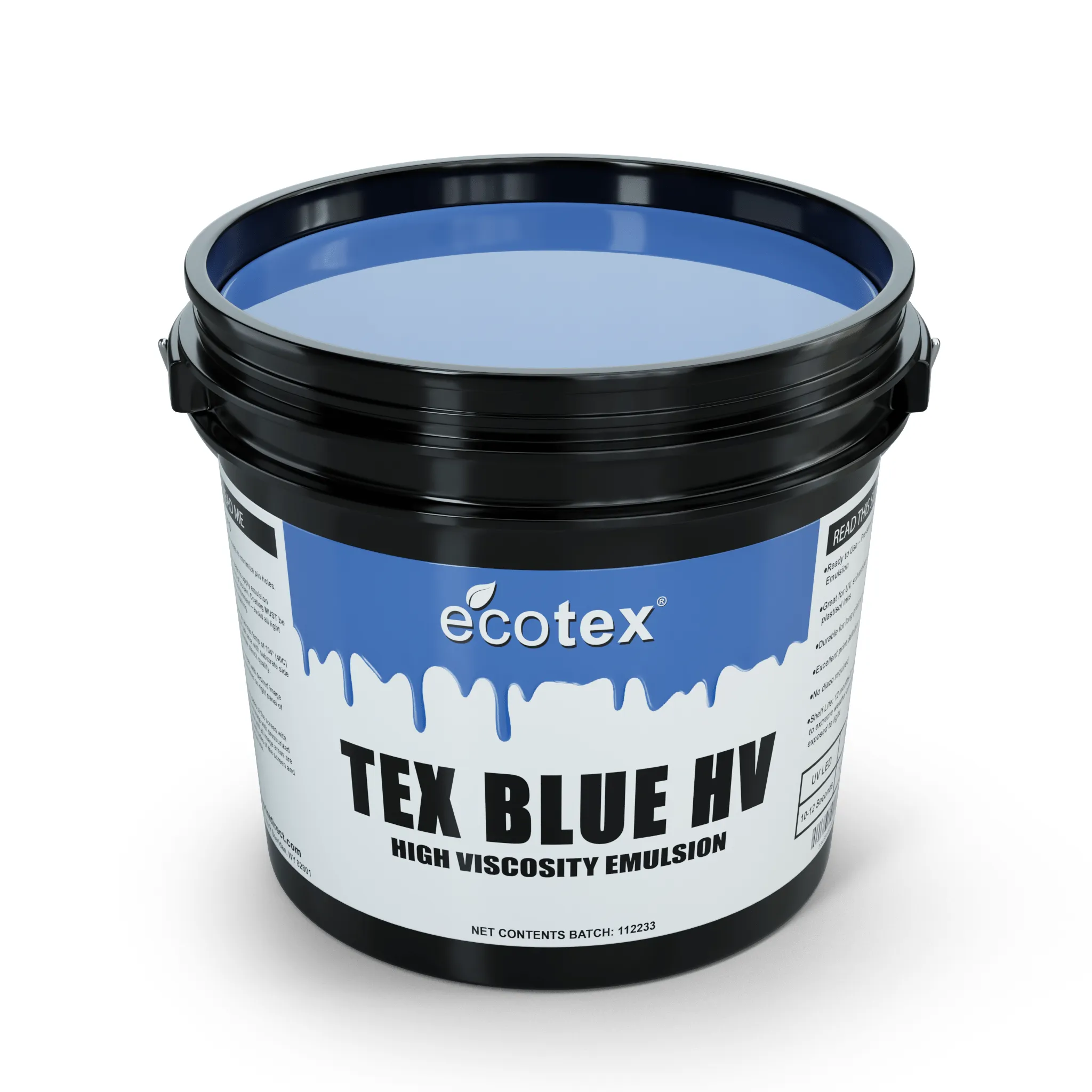

Ecotex® Textile Blue High Viscosity Screen Printing Emulsion (TEX Blue HV) by Screen Print Direct® is a pre-sensitized, ready-to-use emulsion formulated for plastisol ink systems. TEX Blue HV Emulsion creates a thicker stencil than your standard emulsion. Thick stencils allow you to lay down thicker layers of ink on the mesh. Tex Blue HV is great for puff and HD affect printing.
Features:
- Color: Blue
- Type: Pre-sensitized Ready to Use
- Detail Quality: High
- Resistance: Solvent Resistant - No emulsion hardener is needed
- Exposure Time: Fast - see for more info
Emulsion screen printing can be tricky and if you still need help trying to find out which is right for you take our This quiz will help you determine which emulsion you need for the project at hand. If you want to learn more about emulsion types and decipher for yourself which emulsion is better take a look at our emulsion guide -
Emulsion Instructions:

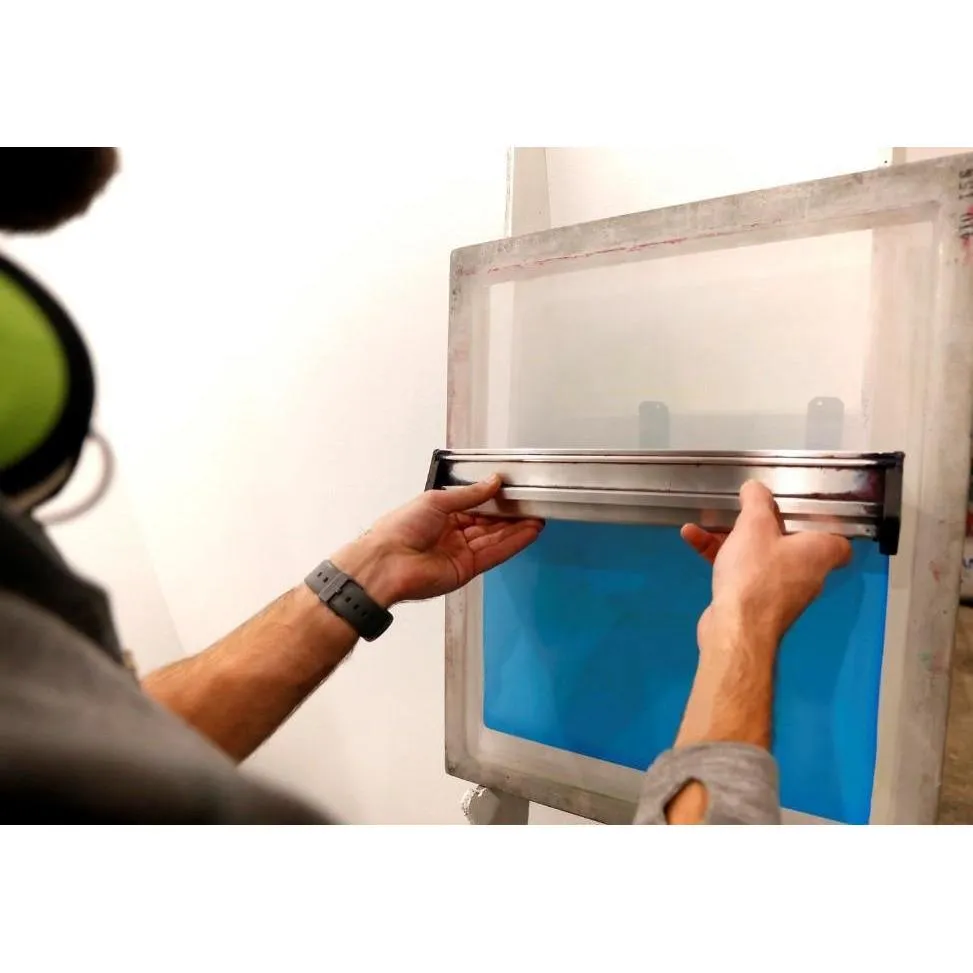

1. Apply Tex Blue HV Emulsion to clean, degreased, and dried screen with a scoop coater. Be sure to use appropriate application techniques.
Note: Keep in mind you need to eliminate any UV light from entering the room. Work under yellow or red light to ensure the photo emulsion does not start the emulsion process early.
2. Allow the emulsion to dry on the screen, shirt side down, until dry to the touch. We recommend letting the photo emulsion dry overnight. Drying specifications can be found below.
3. Expose Emulsion. Time will vary depending on the unit, we have recommended times below. If not using the units mentioned below we highly recommend using an exposure calculator to help dial in exposure times faster than a trial and error method. You can find here.
4. Once you have printed with your screen clean the ink off the screen with or , differences are detailed below. If you plan on reusing this stencil do not reclaim it. If you are done with this stencil, reclaim the screen with . Do not leave remover on the screen longer than a minute or the emulsion will lock onto the screen. For more instructions on photo emulsion remover please visit
Tex Blue HV Emulsion Exposure Time:
Exposure times may vary, start using the times provided below and make adjustments to time if needed.
- 13 - 15 seconds with 80W LED Light
- Light source 2-3 inches away from the screen
- Light source under the screen and artwork
- 7.5 - 8 minutes with 500w Halogen Light
- Light 14-15 inches away from the screen
- Light source suspended above the screen
- 30 seconds with 30W UV LED Light ( SPD exposure unit)
- Light 14-15 inches away from the screen
- Light source suspended above the screen
Drying:
- 86 ° to 104 °F (30 ° to 40 °C)
- 30% to 50% humidity
- Good Air Circulation

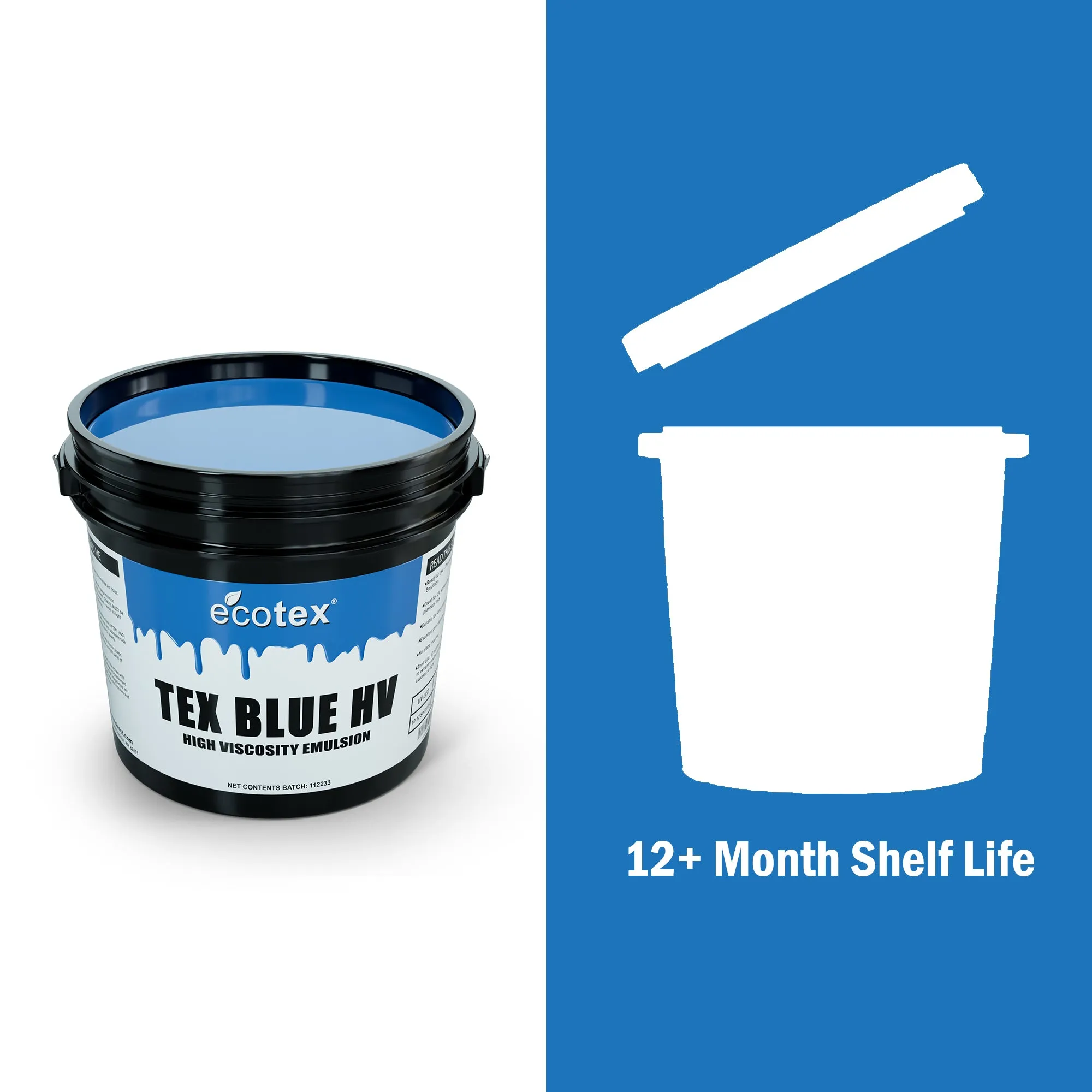

Shelf Life & Storage:
- 12 months if not exposed to extreme weather conditions or exposed to light
- Mixed with diazo for water-based Inks: 1 week
✔️Pro Tips:
- Prep your screen before coating with
- Eliminate any UV light from entering the room and work under a yellow light.
- Use the sharp edge of your scoop coater
- Make sure the screen is completely dry before coating the emulsion
- Make sure emulsion is completely dry before printing
- Keep the emulsion lid on tight to preserve air and light leaks
- Gently mix the emulsion each time before use to help extend the life
- Write down the day you opened the emulsion on the bottle to better keep track of your chemicals.
- Keep in a cool area, emulsion will break down much faster in heat. Keeping emulsion in a fridge can help to give a slightly extended shelf life, however, emulsion that has gotten to the point of freezing will no longer work properly and must be replaced
