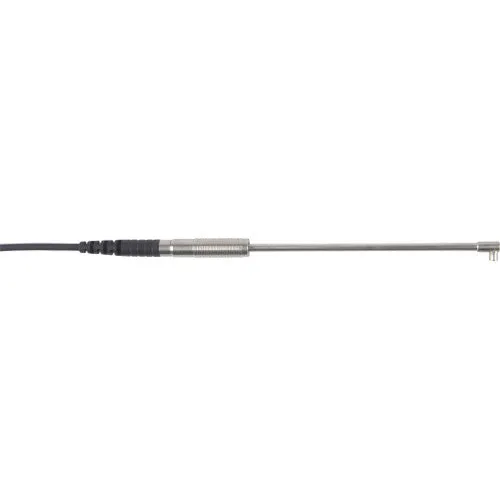

Mini 90° Non-Ferrous Substrate Probe | Scale 0.5 | 400mm | Elcometer 456

Manufacturer: Elcometer

Part #: T456CNM3R90E

Description: The all New Elcometer 456 Mini 90 Degree Non-Ferrous Probe is designed to work with our Elcometer 456 Separate Gauges.

Right angled probe with mini measuring head.

Ideal for measuring the walls of hard to reach areas of pipes or boreholes.

Specifications:

• Length 400mm (15.7")
• Range: 0-20 mils (0-500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1 mils: 5-20 mils (0.1µm: 0-100µm; 1µm: 100-500µm)
• Minimum convex surface radius - 6mm (0.24")
• Minimum concave surface radius - 8.5mm (0.33")
• Minimum headroom - 16mm (0.63") Width: 7mm (0.28")
• Minimum sample diameter: 4mm (0.16")

*Whichever is greater
